Product Summary
The TLP521-4GB is a high density mounting phototransistor. The applications of the device include Computer terminals, Industrial systems controllers, Measuring instruments and Signal transmission between systems of different potentials and impedances.
Parametrics
TLP521-4GB absolute maximum ratings: (1)Storage Temperature: -55℃ to + 125℃; (2)Operating Temperature: -30℃ to + 100℃; (3)Lead Soldering Temperature (1/16 inch (1.6mm) from case for 10 secs): 260℃; (4)Forward Current: 50mA; (5)Reverse Voltage: 6V; (6)Power Dissipation: 70mW; (7)Collector-emitter Voltage: 55V; (8)Emitter-collector Voltage: 6V; (9)Power Dissipation: 150mW; (10)Total Power Dissipation: 200mW.
Features
TLP521-4GB features: (1)Options : 10mm lead spread - add G after part no, Surface mount - add SM after part no, Tape&reel - add SMT&R after part no.; (2)High Current Transfer Ratio ( 50% min); (3)High Isolation Voltage (5.3kVRMS ,7.5kVPK ); (4)High BVCEO ( 55Vmin ); (5)All electrical parameters 100% tested; (6)Custom electrical selections available.

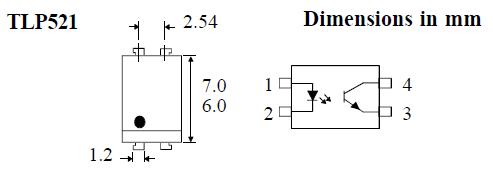

Diagrams
